Description

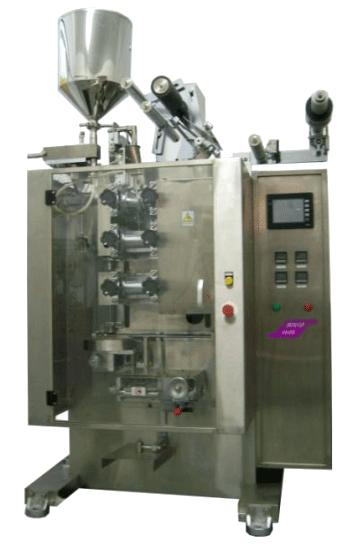

SP-0304-PP Series machine adopts 3 step rolls (the 3rd step is for cooling),specially designed for automatic 3 or 4 side sealing Liquid & Viscous Filling and packing. The machine adopts advanced industrial control technologies. By PLC system with Soft Touch Screen, adjustments for wide-range bag length and packing speed variations can be made set easily and precisely. This machine can equip with different pumps according to customers materials.

GOODS TO PACKED
This machine is suitable for filling and packing liquid and Viscous such as: meatsauce,curry,cooking oil,soy bean sauce,pesticide,ketchup,cream,etc. (Refer to sample)

LIQUID & VISCOUS HIGH-SPEED PACKING MACHINE

SPEC OF MACHINE TO PACKAGING
Bag length:40 ~ 90mm / 70 ~ 120mm

Bag width :20 ~ 90mm

Film width: 40 ~180mm

Packing speed: 30 ~ 120 bag/min (depend on product and volume)

Filling capacity : 0 ~ 50ml

Applicable Film material : PET/AL/PE , PET/PE , NY/AL/PE , NY/PE

Power : Around 3.5kw / AC415 / 3ph

Dimension : L=1400mm ,W=1000mm ,H=1800

Machine weight : approximate 550kg
